Summary: MIDI: Multi-Instance Diffusion for Single Image to 3D Scene Generation
0. Materials
1. What is the paper about?

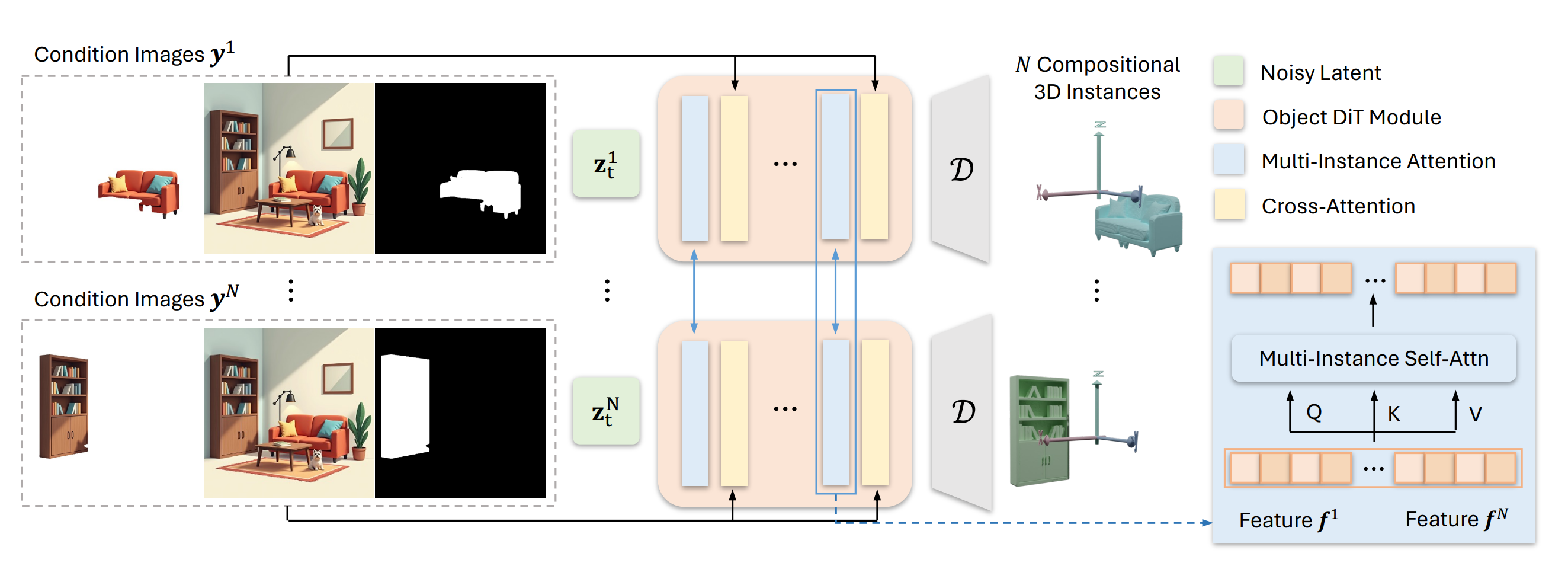

WorkFlow: Grounded-SAM segmentation -> Input: mask + local view + global view (7 channels in total) -> Multi-instance diffusion parallel denoising (with cross-instance attention).
Introduces MIDI (Multi-Instance Diffusion), the first framework that turns a pre-trained single-object diffusion model into a multi-object generator able to create a full 3-D indoor scene from one image
Parallel denoising of N latent codes (one per object) with shared weights plus new multi-instance attention so every object token can attend to all other objects, enforcing correct spatial relations during generation
Conditioning combines each cropped object image, its mask and the global scene image; final latents are decoded to meshes and compose the scene without extra layout optimization
2. What is new compared to prior work?
Replaces the long pipeline “segment → inpaint → single-object generation → layout solve” used by Gen3DSR, REPARO, etc., with a single diffusion pass
Multi-instance attention layer generalises object self-attention to cross-object attention, letting tokens query all instances instead of only their own, which previous single-object models lacked
Applies LoRA to adapt the 21-layer DiT backbone with only a few percent of parameters, keeping the pre-trained geometry prior intact
Mixes a small, cleaned split of 3D-FRONT scenes with single-object Objaverse samples, preserving shape diversity while learning spatial relations
3. What experiments were run to support the arguments in this paper?
Quantitative evaluation on 3D-FRONT and BlendSwap; MIDI wins in scene-level & object-level Chamfer-D, F-Score and bounding-box IoU while running in 40 s vs. 4–9 min for multi-stage baselines
Qualitative comparison on Matterport3D and ScanNet shows more complete geometry and better alignment than PanoRecon, Total3D, InstPIFu, SSR, DiffCAD, Gen3DSR, REPARO
Feeding SDXL-generated cartoon / CG / illustration scenes demonstrates strong out-of-distribution generalisation; REPARO often mis-places objects while MIDI stays coherent
Ablations:
- Vary number of multi-instance attention layers (K = 0, 5, 21) → K = 5 best; K = 0 breaks spatial coherence, K = 21 over-fits and distorts geometry
- Remove global scene image or Objaverse mixing → IoU/F-Score drop and shapes degrade, proving both components are critical
Full scene produced in ~40 s on a single A100 GPU
4. What are the shortcomings/limitations of this paper?
Generating all instances in the same normalised scene box causes tiny objects to occupy few voxels, lowering their resolution
Interaction diversity is limited by current datasets; dynamic or articulated relations (e.g., a person holding a mug) are not well modelled
Instance count capped (N ≤ 5) during training/inference due to GPU memory; large cluttered rooms must be processed in batches
Background layout (walls, floors) is not generated—must be added with external methods, unlike holistic feed-forward reconstructions
Relies on accurate segmentation masks; errors from Grounded-SAM propagate to 3-D output
5. What is a reasonable next step to build upon this paper?
Predict each object in its own local coordinate (full resolution) and regress a 6-DoF pose to place it in the scene, solving the small-object resolution issue while keeping joint optimization.
Augment training with interaction-rich datasets (e.g., synthetic articulated scenes or MOABA—“manipulating-objects-and-body” assets) to scale the multi-instance attention toward human–object and object–object dynamics.
Explore geometry-aware attention that injects explicit 3-D positional encodings (distance, relative orientation) to improve spatial reasoning efficiency and allow deeper stacks without over-fitting.
Pair MIDI with open-world segmentation + text prompts so it can tackle outdoor streetscapes or mixed reality scenes.
Integrate a layout-aware refinement network that upsamples small objects and predicts background surfaces, delivering complete editable CAD-like scenes.
Appendix
Diffusion Transformer (DiT) – a diffusion model whose denoising network is a Transformer that operates on latent patches rather than a U-Net
VAE (Variational Auto-Encoder) – an encoder–decoder generative model that compresses data into a low-dimensional latent space and reconstructs it stochastically.
CFG (Classifier-Free Guidance) – inference trick that mixes a conditional and an unconditional denoising prediction; the guidance scale (here 7) multiplies their difference to strengthen conditioning
LoRA (Low-Rank Adaptation) – fine-tuning technique that inserts tiny low-rank matrices into pretrained weights, allowing efficient adaptation with few trainable parameters
Grounded-SAM – an open-vocabulary instance-segmentation system that combines Grounding-DINO detection with SAM masks; used to obtain object masks before running MIDI
Chamfer Distance (CD) – average nearest-point distance between two point clouds; lower values mean closer geometry
F-Score (3-D reconstruction) – harmonic mean of precision and recall computed with a fixed surface-to-surface threshold; higher is better
Volume IoU (IoU-B) – intersection-over-union between predicted and ground-truth 3-D bounding-box volumes, measuring layout accuracy.
3D-FRONT – large synthetic dataset of furnished indoor rooms with meshes, layouts and semantics; MIDI is trained and evaluated on it
Objaverse – open collection of 800 k+ 3-D objects used to retain single-object shape diversity during training.
Matterport3D / ScanNet – real-world RGB-D indoor scan datasets commonly used for scene reconstruction benchmarks.
SDXL (Stable Diffusion XL) – an advanced text-to-image latent-diffusion model; its stylised images were fed to MIDI for out-of-distribution tests
DINO-ViT – a Vision Transformer trained with self-distillation (DINO) that provides strong image features; serves as MIDI’s image encoder.
SDF (Signed Distance Function) – scalar field giving signed distance to the nearest surface; decoding SDF values yields watertight 3-D meshes.
Tri-plane representation – encodes a volumetric field with three orthogonal feature planes, enabling fast, memory-friendly 3-D generation/rendering
Baseline methods (InstPIFu, Total3D, DiffCAD, Gen3DSR, REPARO) – representative single-image 3-D reconstruction pipelines against which MIDI is compared, covering direct regression, retrieval-based and multi-stage compositional approaches.
