Summary: MARLIN: Mixed-Precision Auto-Regressive Parallel Inference on Large Language Models

yewentao included in category Paper_summary

2025-08-03 2025-08-09 568 words 3 minutes

Contents

0. Materials

Introduce MARLIN (Mixed-Precision Auto-Regressive LINear) kernel. Pairing 4-bit weight quantization with Ampere GPU features such as cp.async, Tensor Cores and Sparse Tensor Cores
Covers Sparse-MARLIN, which adds 2 : 4 structured sparsity and the mma.sp instruction
Near-ideal 4 × speed-ups up to batch 32 on an A10, ~3 × end-to-end gains in vLLM serving

Earlier 4-bit kernels hit compute limits once batch > 1; MARLIN’s multilevel pipeline (HBM→L2→SMEM→TCU) keeps weight loads dominant up to batch≈50 by hiding compute behind cp.async prefetches
Sparse-MARLIN rearranges 4-bit non-zeros and metadata offline so each warp issues 128-bit loads and one ldmatrix per four mma.sp calls

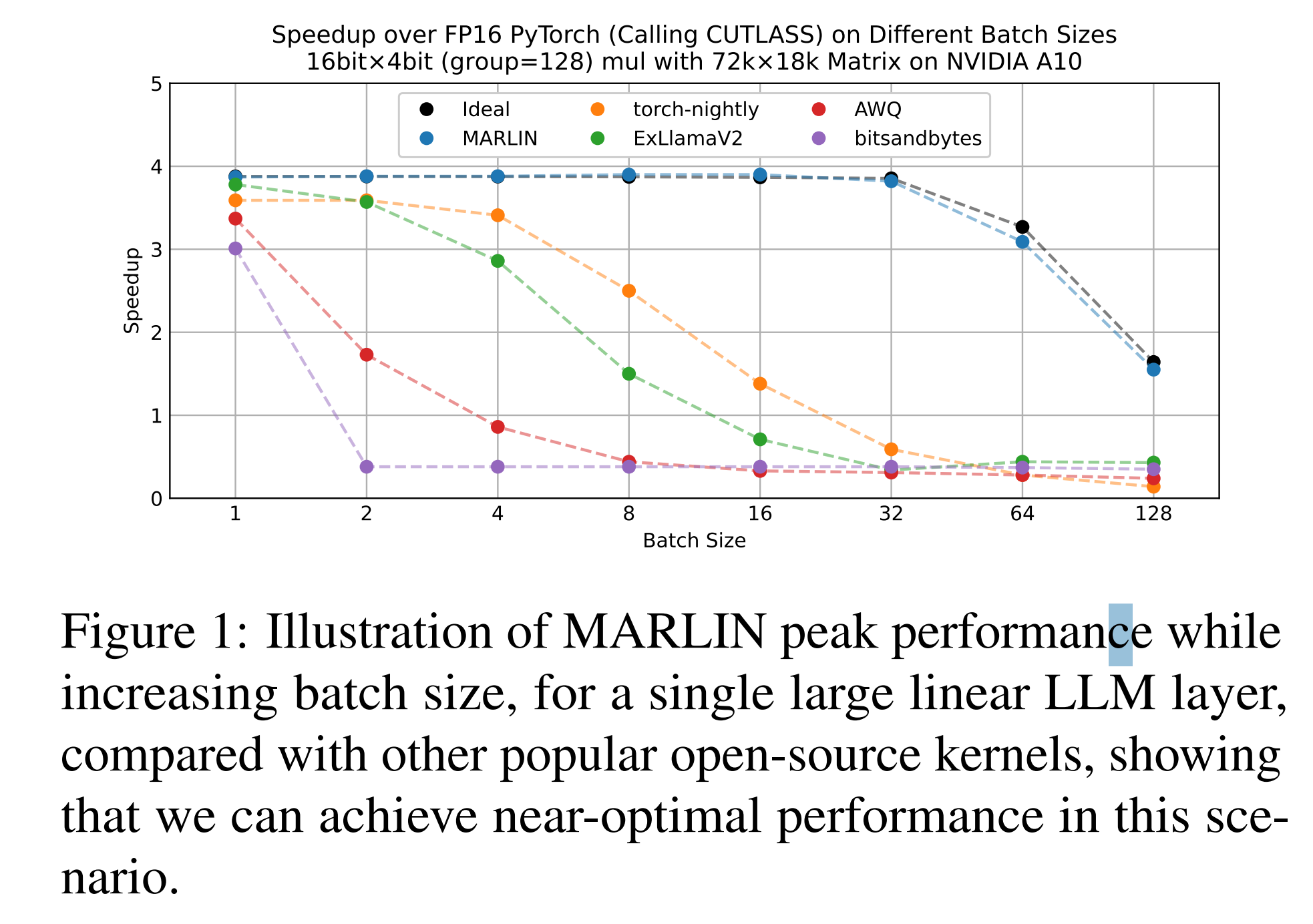

72 k × 18 k GEMM micro-benchmarks on A10 vs PyTorch/CUTLASS FP16 baseline and 4 open-source 4-bit kernels across batch 1-128; MARLIN stays within 5 % of the 3.87 × ideal until batch 32, others collapse after batch 4
Plotted FLOP/s vs arithmetic intensity for four matrix sizes 4 k-32 k and batch 1-65 k—data points hug the memory roof < 64-batch, move to compute roof > 64-batch, matching theory (FLOP/Byte≈200)
vLLM integration on A10 for E2E test, with 64-in/64-out tokens—MARLIN 3 × faster TPOT, Sparse-MARLIN 3.3 ×
Reported GPTQ INT4 and SparseGPT 2:4 INT4 perplexity on MMLU, ARC, WinoGrande: < 4 pp drop (INT4) and small gains after KD finetune (INT4+2:4)

Optimisations heavily target NVIDIA Ampere (A10/A100); portability to Hopper, AMD or Intel GPUs is untested and non-trivial
Only weight-only 4-bit; activations remain FP16, so memory for KV-caches and attention isn’t reduced
≥1024-batch prefill still ~10 % slower than FP16 due to compute limits; no further tuning shown.

Add support for W4 × A8 or joint W3 × A4 schemes
Re-implement core ideas using Hopper’s wgmma, AMD matrix core intrinsics, or Intel AMX, enabling portable low-bit inference.
Investigate whether runtime-generated 2:4 masks (e.g., from MOE sparsity) can be fused into Sparse-MARLIN’s pipeline.

RF (Register File): the per-SM bank of 32-bit registers that holds thread-private operands and accumulators
SPTC (Sparse Tensor Core): Ampere Tensor Cores that accelerate 2 : 4 structured-sparse matrices via the mma.sp instruction
cp.async: an Ampere ISA instruction that issues asynchronous, non-blocking copies from global or L2 straight into SMEM, optionally bypassing L1
ldmatrix: PTX instruction that loads 8/16 × 16 sub-tiles from SMEM to registers, optionally transposing them for Tensor Core consumption
mma.sync: regular Tensor Core MMA operation that multiplies two 16-bit matrices and accumulates into FP32 registers in one cycle
mma.sp: sparse Tensor Core instruction that multiplies a 50 % 2 : 4-sparse INT8/FP16 LHS with a dense RHS, skipping the zero lanes
Arithmetic Intensity: the ratio of FLOPs to bytes moved (FLOP/Byte = flops/s / bytes / s), describing how many FP operations can be issued while fetching one byte

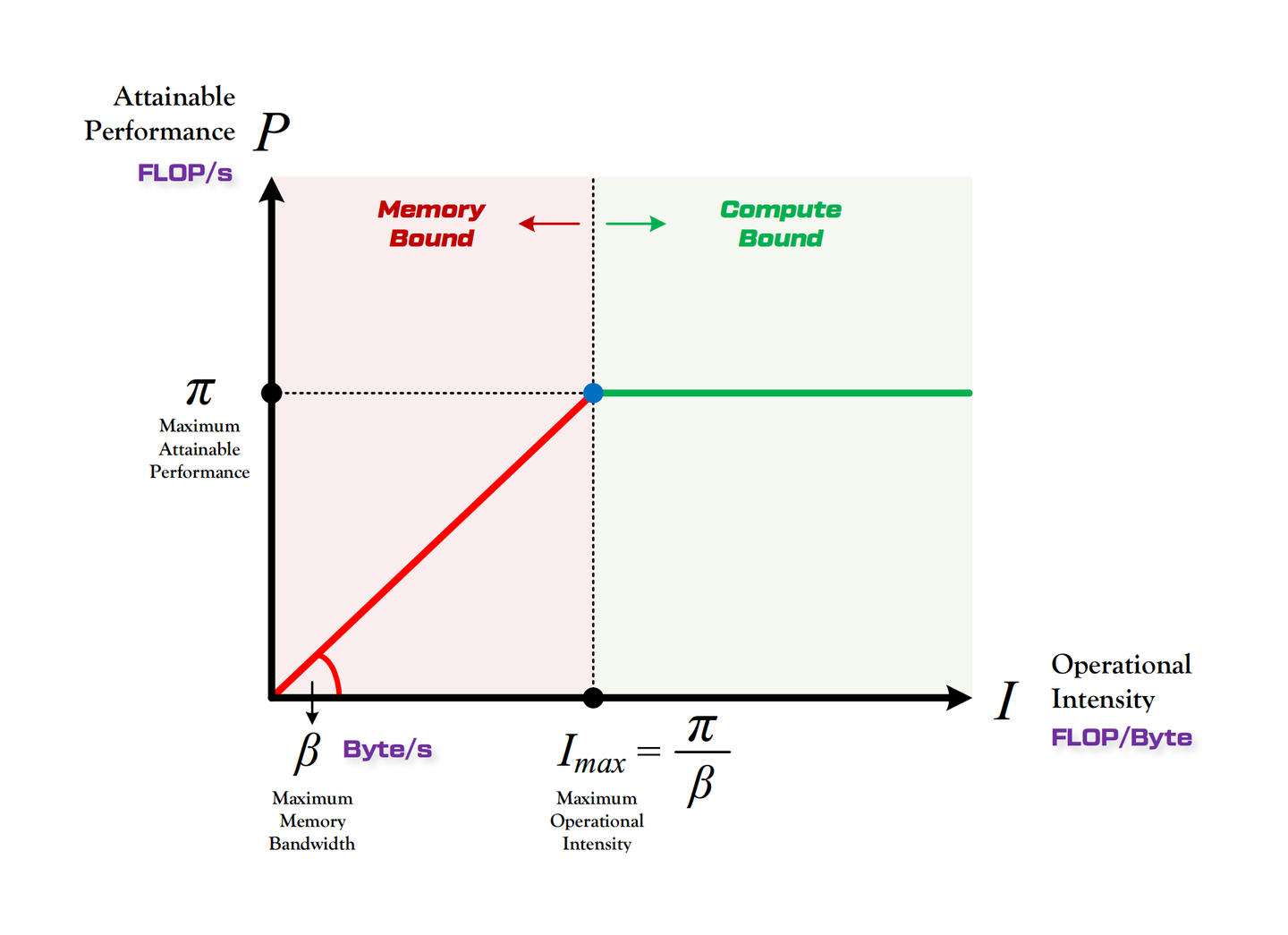

Roofline Model: kernels below the roofline diagonal are memory-bound; compute bound otherwise.
AWQ (Activation-aware Weight Quantization): rescales only the 1 % most-salient channels to protect them during 4-bit rounding, avoiding mixed precision
joint W3 × A4: weights are 3-bit vector-quantised and activations are 4-bit integer.
2 : 4 Sparsity: hardware pattern requiring that, in every contiguous group of four values, any two must be zero, enabling 2× throughput on SPTCs
