Summary: FlashAttention-3: Fast and Accurate Attention with Asynchrony and Low-precision
0. Materials
1. What is the paper about?
Introduces FlashAttention-3, a non-approximate self-attention kernel optimised for NVIDIA Hopper GPUs.
Exploits asynchrony (warp-specialised TMA loads + asynchronous WGMMA Tensor-Core matmuls) to overlap memory transfers, GEMMs and softmax.
Adds low-precision (FP8) support with block quantisation and “incoherent processing” to keep accuracy while doubling raw math throughput.
Delivers 1.5–2 × speed-up over FlashAttention-2 and up to 85 % peak utilisation on H100; FP8 version reaches ~1.3 PFLOPs/s.
2. What is new compared to prior work?

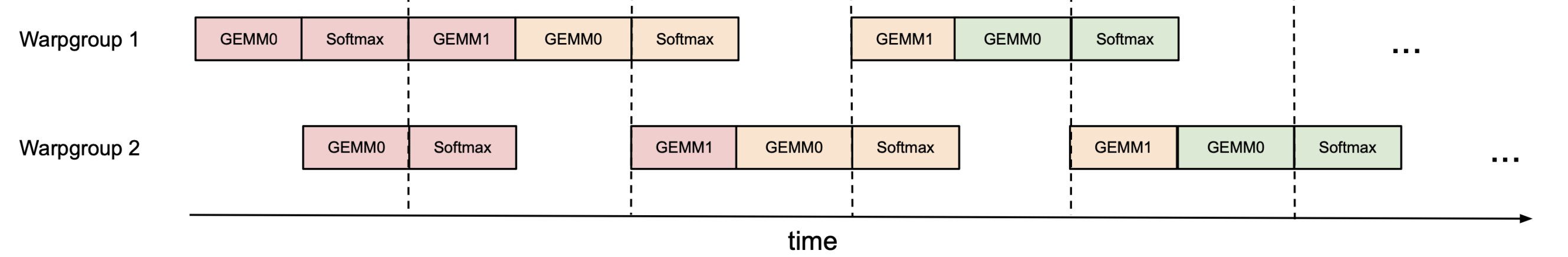

- Separates producer (TMA) and consumer (WGMMA) warps to fully hide load latency. Consider it as inter-node pipeline:

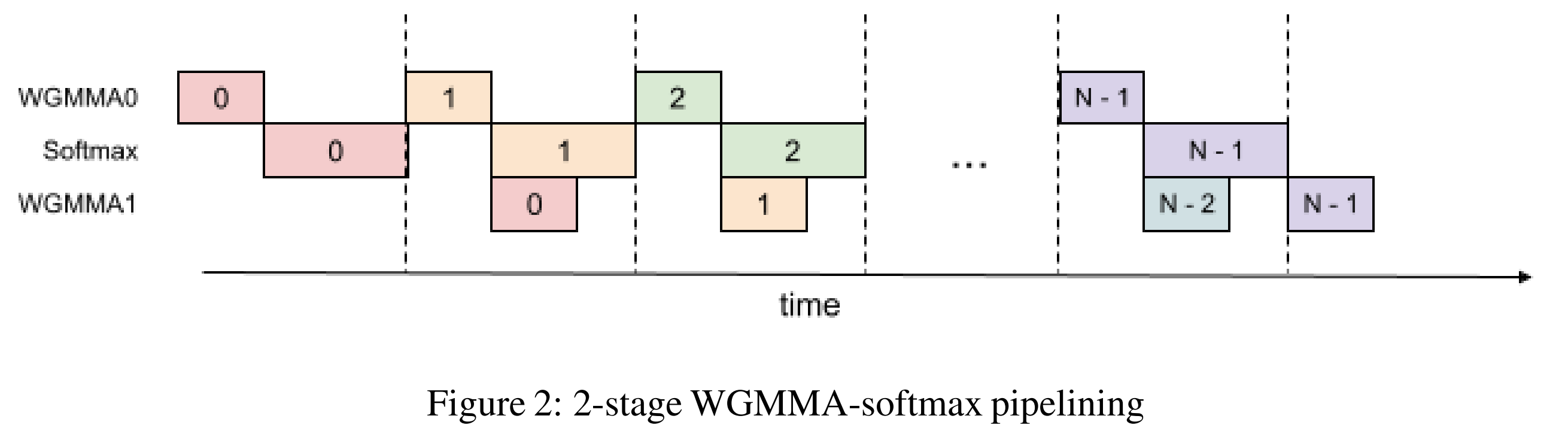

- Overlaps softmax of one block with the two GEMMs of the next, eliminating MUFU bottlenecks. Consider it as intra-node pipeline:
- Register-level layout shuffles so the FP32 accumulator of QKᵀ can be down-cast and fed directly as FP8 input to PV without extra memory traffic.
3. What experiments were run to support the arguments in this paper?
Throughput benchmarks (BF16 & FP8, seq-length 512–16 k, head dims 64/128/256, causal & non-causal) vs. PyTorch baseline, FlashAttention-2, Triton FA-2, and cuDNN kernels. FlashAttention-3 achieves 1.5–2× speed-up and beats cuDNN for ≥ 1 k tokens.
Backward-pass benchmarks showing 1.5–1.75× faster gradients than FlashAttention-2.
FP8 forward benchmarks (head-dim 256) hitting 1.3 PFLOPs/s, outperforming Triton and cuDNN FP8 kernels.
Ablation Experiment that removing warp-specialisation or 2-stage pipeline drops BF16 throughput from 661 → 582/570 TFLOPs/s, isolating each technique’s ~12-14 % contribution.
Numerical-error test on synthetic “outlier” distributions shows FP8 FlashAttention-3
RMSE = 9.1 e-3vs.2.4 e-2for plain FP8 attention (2.6× better).
4. What are the shortcomings/limitations of this paper?
Inference-centric workloads (tiny batch, KV-cache reuse) not yet optimised; kernels tuned for training-style large batches.
FP8 training convergence assessed only on small synthetic tasks; full-scale LLM training stability still unverified.
Causal-mask short-sequence cases sometimes still lag behind heavily hand-tuned vendor kernels.
5. What is a reasonable next step to build upon this paper?
Design inference-specific, persistent-kernel variants that keep KV-cache in SMEM/registers and amortise launch overhead at small batch sizes.
End-to-end FP8 LLM training studies, comparing convergence, final task quality, and energy use against BF16/FP16 baselines.
Investigate 3-stage (or deeper) pipelines with automated tile-size vs. register-count search to push utilisation past 85 %.
Appendix
Warp-specialised TMA – A producer/consumer kernel style where a few “producer” warps issue Tensor Memory Accelerator asynchronous loads, while the remaining “consumer” warps do compute, completely overlapping memory traffic with maths.
Circular SMEM buffer – A ring of shared-memory tiles reused in round-robin fashion so new K/V blocks can be loaded while old ones are being consumed.
setmaxnreg– A Hopper PTX instruction that dynamically reallocates the register budget between warp-groups, giving compute warps more registers and loaders fewer.MUFU (Multi-Function Unit) – The GPU sub-unit that executes slow ops (exp, log); it is the bottleneck for softmax relative to Tensor-Core GEMMs.
Block quantisation – Low-precision scheme that stores one scale per tile (e.g., 64×d) instead of one scale per tensor, improving FP8 accuracy at negligible cost.
Incoherent processing – Pre-multiplying Q and K by a random orthogonal (Hadamard-based) matrix so large outliers are “spread out” before FP8 quantisation. Key idea:
(QM)(KM)^⊤ = QK^⊤Hadamard matrix – A ±1 orthogonal matrix that supports
O(d log d)fast transforms and is used in incoherent processing for outlier mitigation.k-major layout – Memory layout where the innermost/contiguous dimension is K (shared width) rather than M/N; required by FP8 WGMMA operands in shared memory.
mn-major layout – The conventional row-major (M-major) or column-major (N-major) ordering.
Register shuffle – Using CUDA
__shfl*instructions to permute data between threads so the FP32 accumulator pattern (Fig. 3) matches the FP8 operand pattern (Fig. 4).Causal mask – A triangular attention mask that prohibits each token from peeking at future tokens, enabling autoregressive generation. Non-causal mask for bidirectional attention.
Warpgroup – Four consecutive warps (128 threads) that the Hopper scheduler can bind together for one WGMMA issue.
