Summary: DistServe: Disaggregating Prefill and Decoding for Goodput-optimized Large Language Model Serving
0. Materials
1. What is the paper about?
Serving a production LLM request has two stages—prefill and decoding. Running them on the same GPUs causes resource contention that hurts latency Service-Level Objectives (SLOs) for time-to-first-token (TTFT) and time-per-output-token (TPOT).

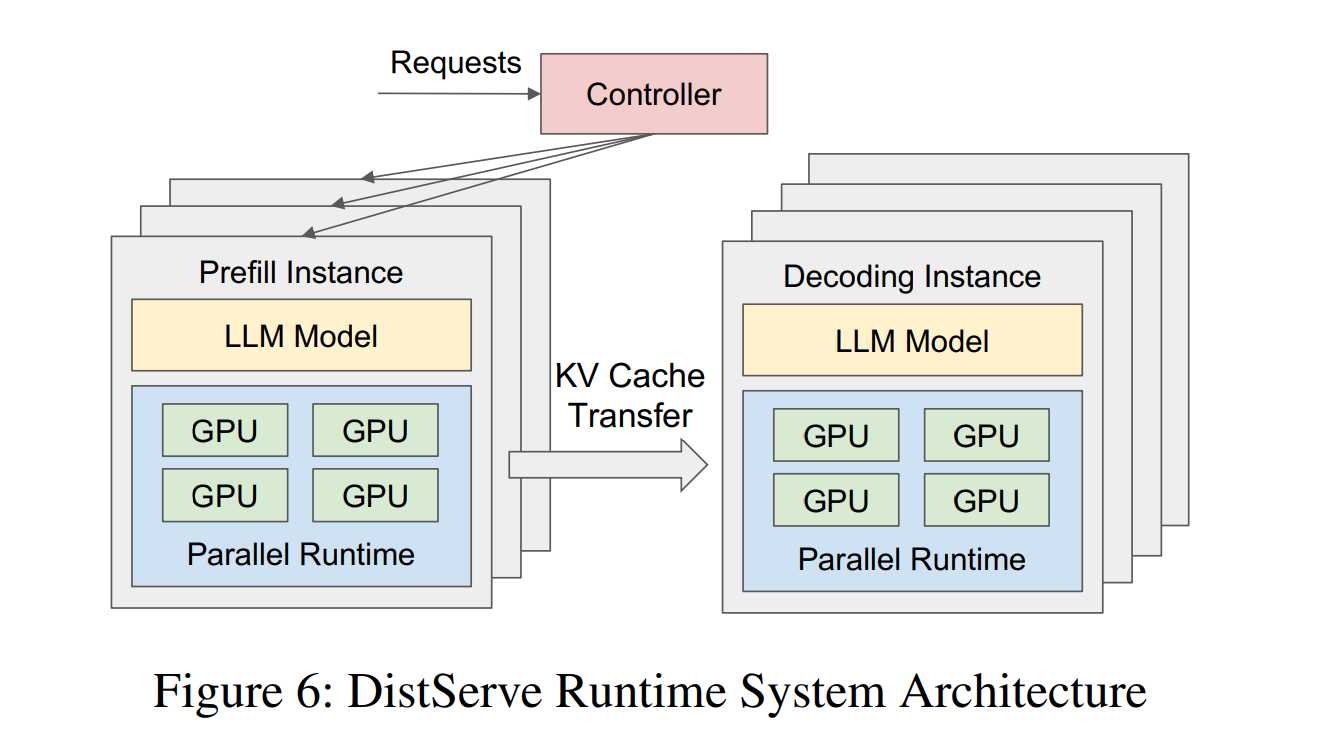

DistServe physically disaggregates the two stages onto separate GPU pools, then uses a simulator-driven search to pick the best parallelism (intra-op, inter-op, replication) and placement for each pool so that per-GPU goodput—the maximum request rate that still meets latency SLOs—is maximised.
Across OPT-13 B/66 B/175 B and three workloads (chat, code completion, document summarisation), DistServe delivers up to 7.4 × more goodput or sustains 12.6 × stricter SLOs than state-of-the-art serving systems while keeping > 90 % of requests within latency budgets.
2. What is new compared to prior work?
Earlier systems (vLLM’s continuous batching or DeepSpeed-MII’s chunked-prefill piggy-back) keep both stages on the same GPU and try to schedule around the interference; DistServe removes the interference entirely by giving each stage its own GPUs.
Prior work mostly optimises raw throughput; DistServe explicitly maximises goodput under dual-latency SLOs, a metric that better aligns with user experience and cost.
It contributes two search algorithms—one for high-bandwidth clusters and one that constrains prefill/decoding segments to share NVLink when cross-node links are slow—minimising KV-cache transfer overhead.
It models prefill as an M/D/1 queue and shows how intra-op (tensor parallel) vs inter-op (pipeline parallel) parallelism trades off execution time vs queueing delay.
3. What experiments were run to support the arguments in this paper?
Chatbot (ShareGPT), Code completion (HumanEval) and Summarisation (LongBench) on OPT-13 B/66 B/175 B, all compared against vLLM and DeepSpeed-MII via SLO attainment vs request rate, and vs tightened latency (SLO Scale).
Measures the fraction of total time spent in prefill queue/exec, KV-transfer, decode queue/exec; shows transfer < 0.1 % even on 175 B with 25 Gb links
DistServe-Low (bandwidth-constrained search) vs DistServe-High (cross-node freedom) isolates the value of the placement algorithm.
Table 2 compares simulator-predicted SLO attainment with real runs across seven load levels (≤ 2 % error).
Figure 12 reports algorithm wall-time (1–82 s on up to 32 GPUs, 96 CPU cores).
Results are contextualised against other disaggregation contemporaries such as TetriInfer and Splitwise, highlighting DistServe’s focus on goodput & bandwidth.
4. What are the shortcomings/limitations of this paper?
Prefill and decoding replicas each keep full model weights, doubling GPU memory consumption and making the design unattractive on smaller cards.
Benefit assumes NVLink-class bandwidth; clusters limited to PCIe-only or slow cross-node links may not realise the gains, especially for very small prompts.
In single- or dual-GPU deployments the design space collapses and DistServe cannot split stages effectively— acknowledged by the authors.
A failed decoding GPU can stall many prefill GPUs; the paper leaves robustness to future work.
Does not evaluate newer attention variants (KV-sharing, MoE, speculative decoding) which could alter the compute/IO balance.
Throughput-oriented or offline workloads may prefer chunked-prefill batching, which DistServe does not optimise for.
5. What is a reasonable next step to build upon this paper?
Add quantisation or on-demand weight paging so prefill/decoding replicas can share parameters, shrinking the doubled memory footprint and enabling mid-tier GPUs.
Integrate preemption and replica-level fault-isolation so that one crashed decoding instance does not cascade to multiple prefill queues.
Develop a runtime that can merge stages back onto the same GPU during low load to save energy, and split them dynamically when SLOs tighten.
Evaluate with speculative decoding, Grouped-Query-Attention and Mixture-of-Experts LLMs; adapt the simulator’s latency model accordingly.
Combine DistServe’s disaggregation with chunked-prefill batching, automatically choosing the mix that maximises revenue per GPU under a service-level cost model.
Appendix
Continuous batching: vLLM’s technique that mixes prefill and decoding tokens in the same batch to keep GPUs busy.
Chunked-prefill batching: DeepSpeed-MII’s idea of splitting long prefills into smaller chunks and piggy-backing them onto decode batches to reduce interference.
SARATHI: Microsoft system that combines chunked-prefill and aggressive decode batching for lower latency.
DeepSpeed-MII: DeepSpeed’s inference wrapper that supports chunked-prefill but not physical disaggregation.
Splitwise / TetriInfer / DéjàVu: Concurrent research projects that also separate prefill and decoding to curb interference; each explores different split granularities.
Grouped-Query-Attention (GQA): Attention variant where groups of query heads share a single key/value pair set, shrinking KV-cache while keeping some head diversity.
Multi-Query-Attention (MQA): Extreme form of GQA where all query heads share one key/value pair set.
Mixture-of-Experts (MoE): Architecture where each token is routed to a subset of specialist sub-networks (“experts”), increasing parameter count without linear compute growth.
M/D/1 queue: Queueing model with Poisson arrivals (M), deterministic service time (D) and one server (1); used to analyse prefill latency.
Goodput: Request rate per GPU that still meets both TTFT and TPOT SLOs; DistServe’s optimisation target.
KV-cache streaming: Runtime mechanism that moves KV-cache slices between GPUs on demand instead of keeping everything resident.
